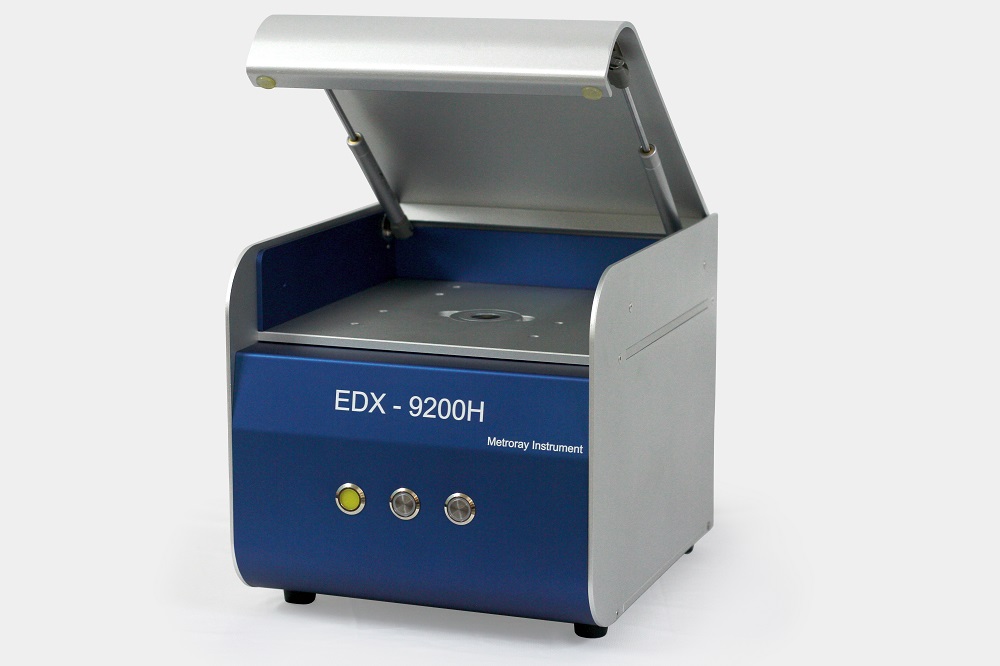

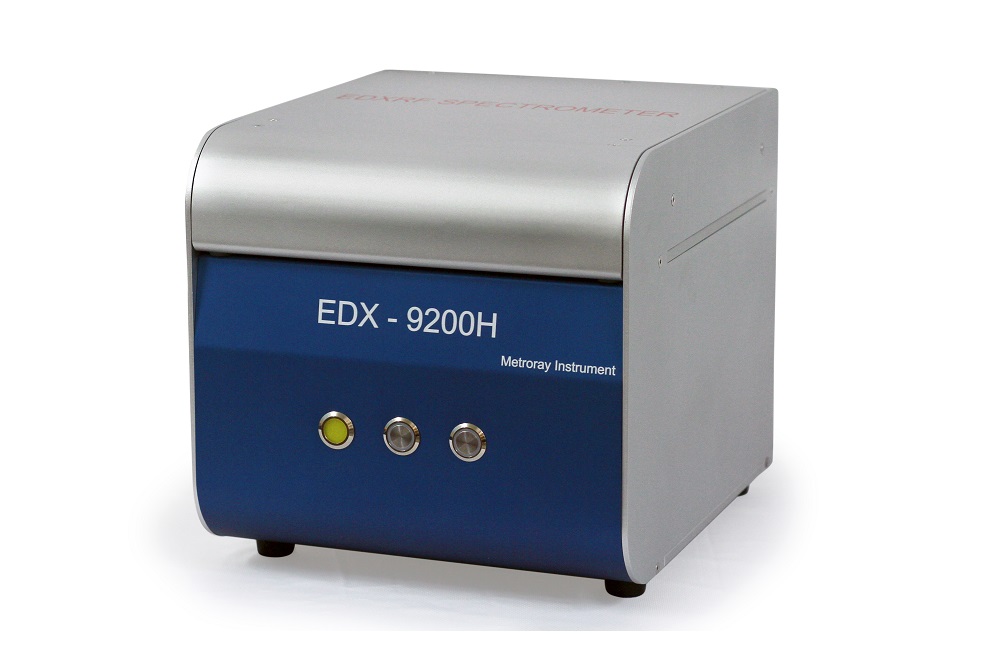

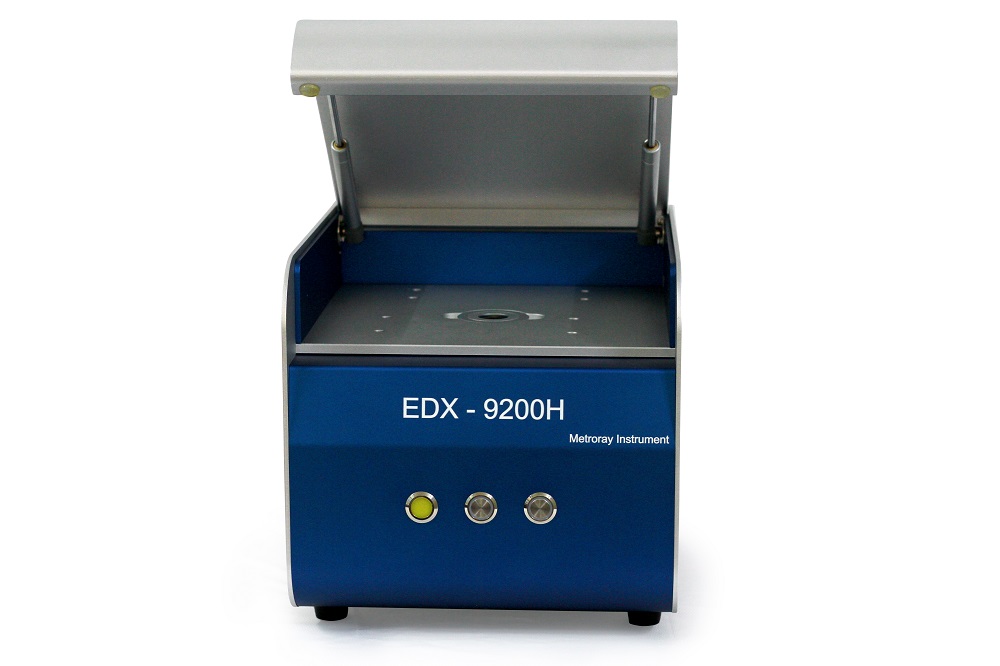

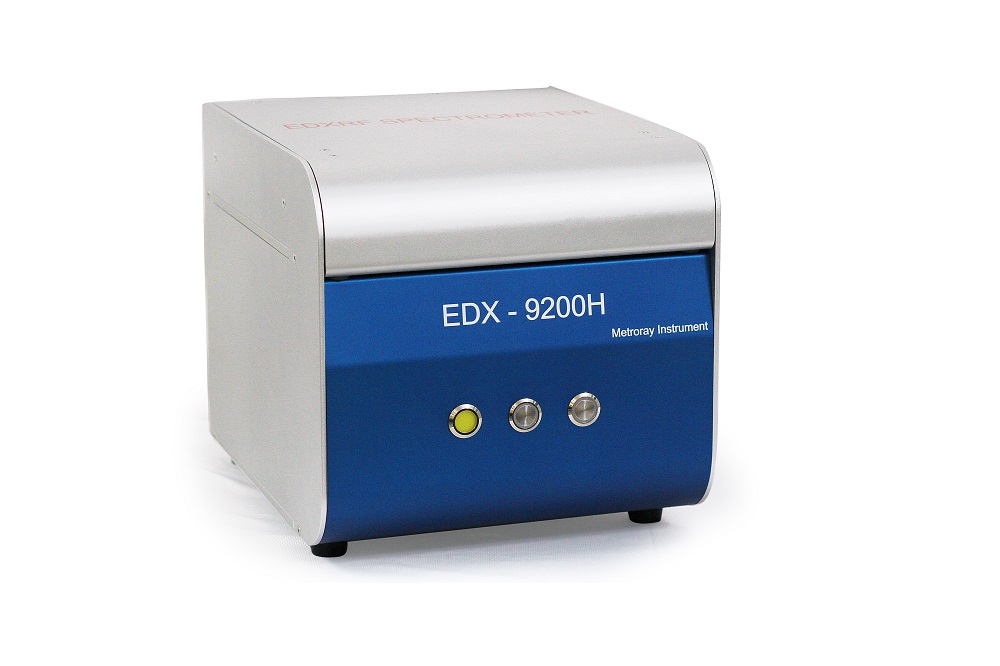

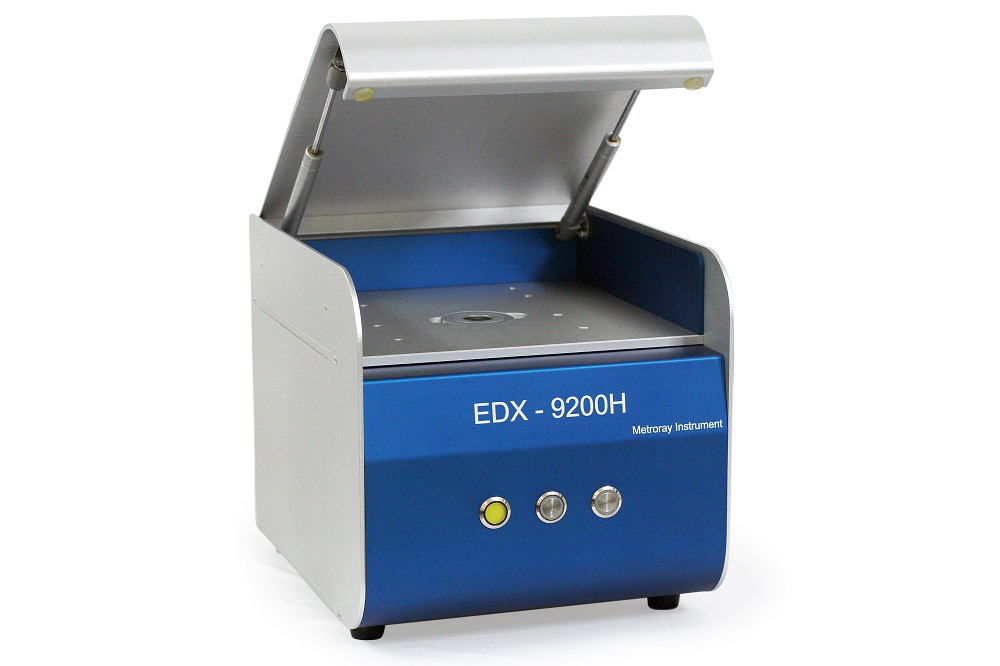

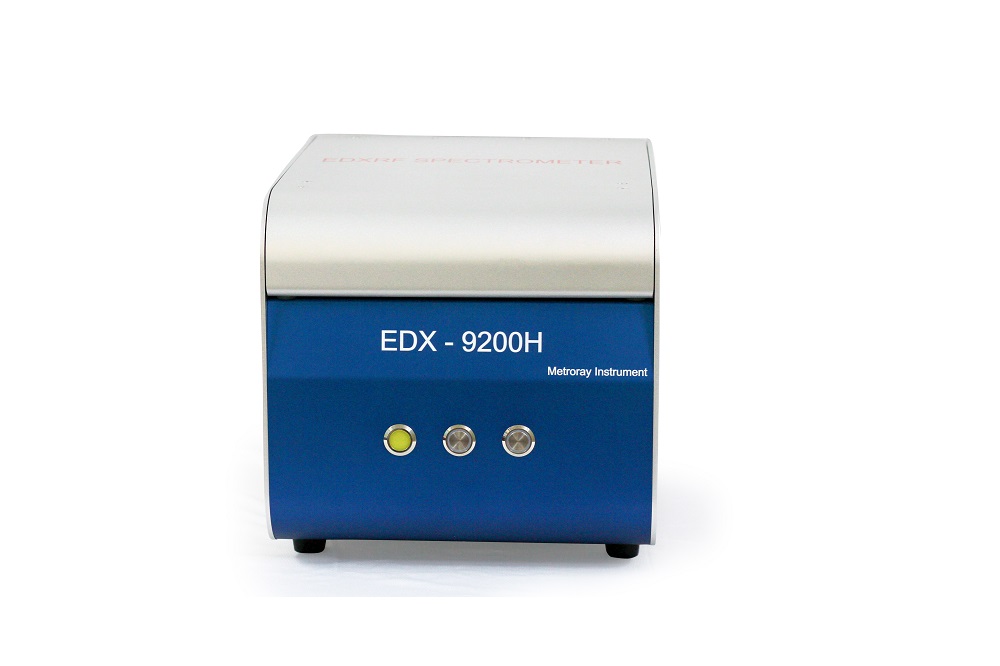

Jewelry Spectrometer – EDX-9200H

EDX-9200H is the advanced solution and choice for coating thickness and jewelry application. In addition, this model also can test thickness of Multi-layers on various basements such as Fe, Cu, Ni, Au, Ag, Zn, Pd…on metal and non-metal basement. Normally, it is used for layer from 1 to 4. If more layers needed, please contact manufacturer for details.

The elements needed to test at the one time is up to 25 to 40 elements such as Au, Ag, Cu, Ni, Zn, Pd, Rh, Ru, Cd, Sn, In, Ga, Pt, Os, Ir, W, Co, Pb, Fe, Mn, Mo

The technology development of EDX-9200H is the highest configuration in the market and can be compatible to use all kind of software like EC+FP, Smart Software EDXRF2.0, EDXRF for thick, EDXRF for RoHS,…So this model can use for various application without changing the hardware.

The EDXRF2.0 allows to set up multi-working curves, multi-testing conditions based on standard samples corresponding to the content ranges and applications

The model EDX-9200H can do the measurement for all kind of samples from liquid, powder and solid with accurate result and stability, especially the repeatability is very excellent while normal xrf machine (XRF-1000, XRF-5000, EDX3000, EDX3000 Plus (EDX5500) EDX900) can not do.



Technical features:

1. Application for measuring the pattern of gold pieces, gold, raw material without destroying the plastic packaging

2. Application for measuring the exploitation of mines in the sample size up 2ppm (model gold mine) with dedicated software for measuring gold mine size ppm: options

3. Application for measuring all kinds of gold from 0% to 99.99% with dedicated software (including the type of gold contained in gold that Super powder)

4. Application for measuring applications need high accuracy and distinguish the narrow strip of golden age as 99, 99.1, 99.4, 99.3, 99.2, 99.5 99.6 99.7 99.8,,,, 99.9, 99.95, 99.99 and 99.97

5. Applications for plating layer thickness measurement with dedicated software ThickFP:

Optional

6. Application for measuring the components of toxic metals in jewelry and related products

(including RoHS) with ph dedicated software size ppm: options



Specifications

Advanced technology DSP DP5, Noice signal by another materials processed by “NOISE OF PLASTIC GOLD TYPE”

Elements range: Au, Ag, Cu, Ni, Zn, Pd , Rh, Ru, Tc, Cd, Sn, In, Sb, Ge, Ga, Pt, Os, Ir, W,

Re, Ta, Ti, Cr, Zr, Co, Pb, Fe, Mn, Nb, Mo …

Sample type: Solid, Liquid and Powder

Sample Measurement: copper ore, iron ore, lead ore, (based on the standard model of reality in order to build the standard)

Specialized software 2.0 with EDXRF CorrectionTM for Type 1106 and EDX-9200H with the application should measure the various elements at a time and measure the gold pieces plastic wrap without destroying the sample

ThickFP thickness: software options

Software to measure the levels of toxic metals: option RoHS4

Precious metals analysis: Inspected and calibrated based on Certified Reference Materials (CRM) – USA (Traced to NIST), CRM and RM samples of BAM, Fluxana – Germany

Test time: 40-200s
